MAB 4200



Vloerveren - 4200 serie
Super compact

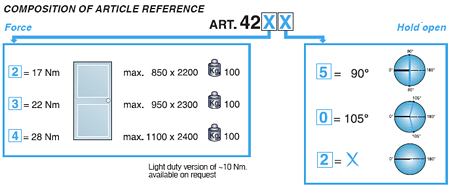

  • One body size in three force sizes EN2-3-4 for doors 750 -1100 mm. wide.
  • Universal for right, left or double action doors.
  • Cast iron body.
  • Suitable for timber, metal and glass doors.
  • Recommended for thin slabs.
  • Adjustment in all directions within the cement box to help solve the problems of uneven floors without taking down the door.
  • Pivot point 55 - 65 mm. without re-locating the cement box thanks to one only template. Particularly user friendly in case of double action glass doors.
  • Vertical adjustment within the cement box in addition to possibility of extended spindle.
  • Hydraulic control over ˜175° in both swings.
    Handed version with control from 180° available on request.
  • Closing speed controlled by two easily adjustable non critical valves.
  • Soft closing or powerful latching action adjusted by valve to ensure proper closing also in case of hard to latch locks.
  • Variety of available spindles: square Italian, square French, rectangular German.
  • Interchangeable spindle from 0 to + 25 mm.
  • Architectural finishes: coverplates in polished s/steel, satin s/steel, polished brass, INOTTONE (brass finished inox enhanced by PVD treatment).
  • All models have quality certification EN1154.
    Versions force EN3-4, without Hold Open, have CE conformity.
