Schuifdeurenbeslag Astec Design 610




Although closely related to astec fitting 600 technically, fitting 610 opens up new possibilities of interior design. Guiding of the door leaf from one side allows doors to extend the full room height. Rooms appear more spacious. runners and counter-runners are fixed directly in the glass. An elegant and inconspicuous fitting for doors with one or two leaves. Direct wall or ceiling installation. Very exclusive for all-glass installations. Max. weight of door leaf 120 kg. Door leaf materials: glass, wood, granite, etc.

technology/materials/quality

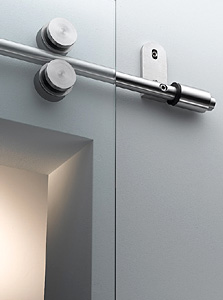

fitting 610 is fitted with two pairs of rollers. these are fixed directly in the door leaf. lateral guiding of the door leaf allows doors to extend the full room height. maximum door weight 120 kg. heavier weights on enquiry. the upper polyamide roller transfers the load to the solid stainless steel supporting rod whilst the bottom roller acts as a retainer for the door leaf. brackets for wall mounting, ceiling suspension or for all-glass installations are available to secure the fitting.

single or multiple track installation for single doors, double doors or multiple elements are possible. special designs for practically all conceivable alternatives. two end stoppers with integrated stop position dampers are fixed directly onto the supporting rod. flexible positioning by means of a simple clamping bolt. solid stainless steel retaining device prevents the door from lifting out unintentionally.

all parts out of stainless steel 1.4305 or 1.4301 (supporting rod). including all necessary connecting and mounting elements. manufactured on cnc precision milling and boring centres. visible surfaces ground and finely brushed, matt. the production plant is certified according to DIN/ISO 9001:2000.
