Assa Abloy (Stremler) Kubika

Hermetisch dicht

Deze scharnier heeft een gedeporteerd mecanisme, waardoor het dichtingsprofiel over de totale hoogte van de deur kan gemonteerd worden zonder deze te onderbreken en dit resulteert in hermetisch dicht.

Gemakkelijke positionering van de scharnier

De bevestigingsplaat heeft breedte gaten dat het bevestigen vergemakkelijkt. Een zelfklevende afdekkap verbergt de schroeven voor een beter esthetisch zicht.

Etanchéité totale

Cette charnière à mécanisme déporté, permet l'installation d'un joint sur toute la hauteur de la porte sans interruption et contribue ainsi à optimiser l'étanchéité de l'ensemble.

Positionnement facile de la charnière

L’équerre est équipée de trous oblongs permettant d’ajuster facilement la position de la charnière lors de la pose. Un cache rend invisible les vis de fixation pour un meilleur esthétisme.

Full seal

The hinge with an offset mechanism means that a sealing strip can be assembled on the whole length of the door without interruption and this optimises water tightness.

Easy hinge positioning

The fixing square has oblong holes to enable easy positioning of the hinge. An adhesive cover hides the screws for a better looking shower.


5 jaar garantie

Referentie Uitvoering
3460.35.ORNS Inox look
Effet Inox
Stainless steel effect
3460.30.ORNS Chroom glanzend
Chromé brillant
Bright Chromium
3460.31.ORNS Chroom mat
Chromé mat
Matt Chromium

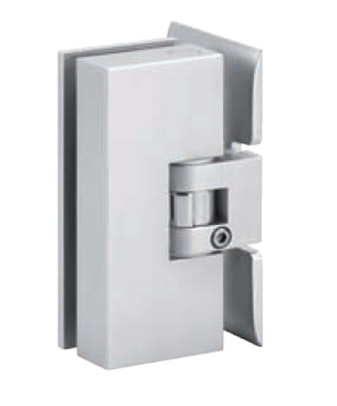

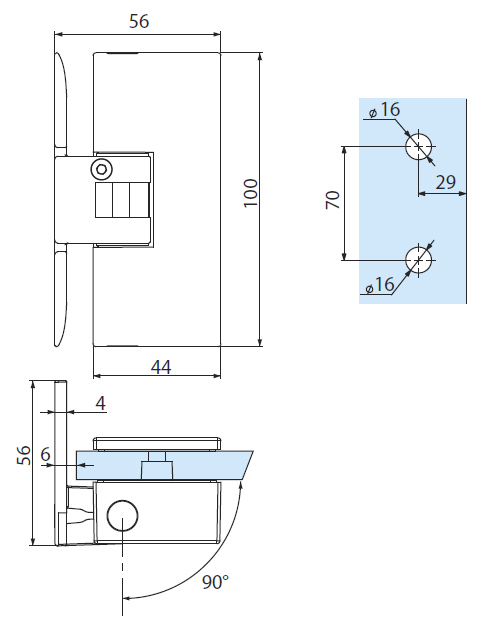

Enkele scharnier
Charnière simple
Simple hinge
3460.XX.ORNS

Click to enlarge

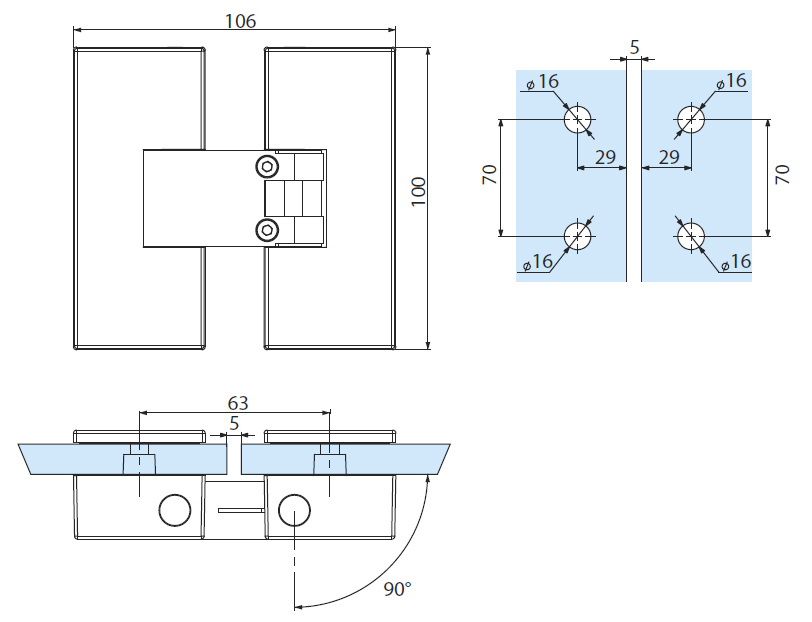

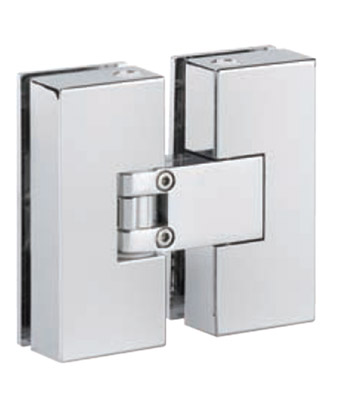

Dubbele scharnier glas/glas
Charnière double verre/verre
Double hinge glass/glass
3460.XX.ORNS

Click to enlarge

Glasuitsparing voor 3460 en 3462
Encoche simple pour 3460 et 3462
Simple notch for 3460 and 3462

Click to enlarge

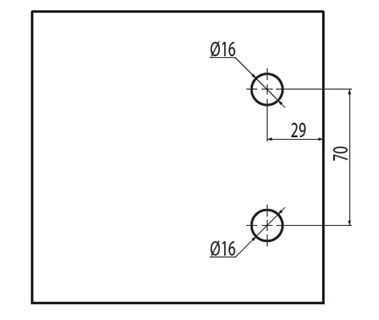

Simpele glasuitsparing (Twee gaten van diam.16mm)
Encoche simple (Encoche 2 trous ø16 mm)
Simple notch (2 holes ø16 mm)

Click to enlarge
